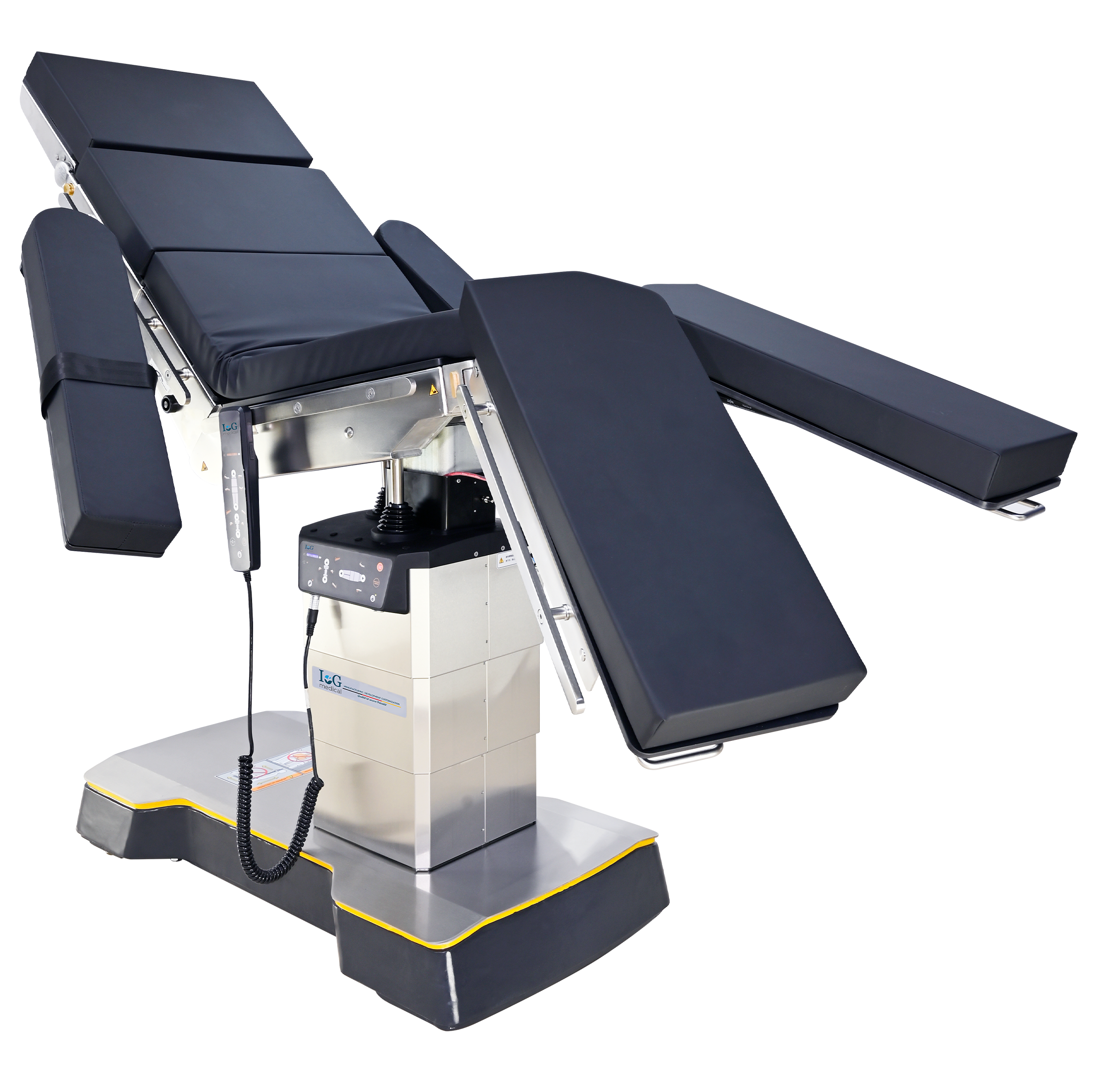

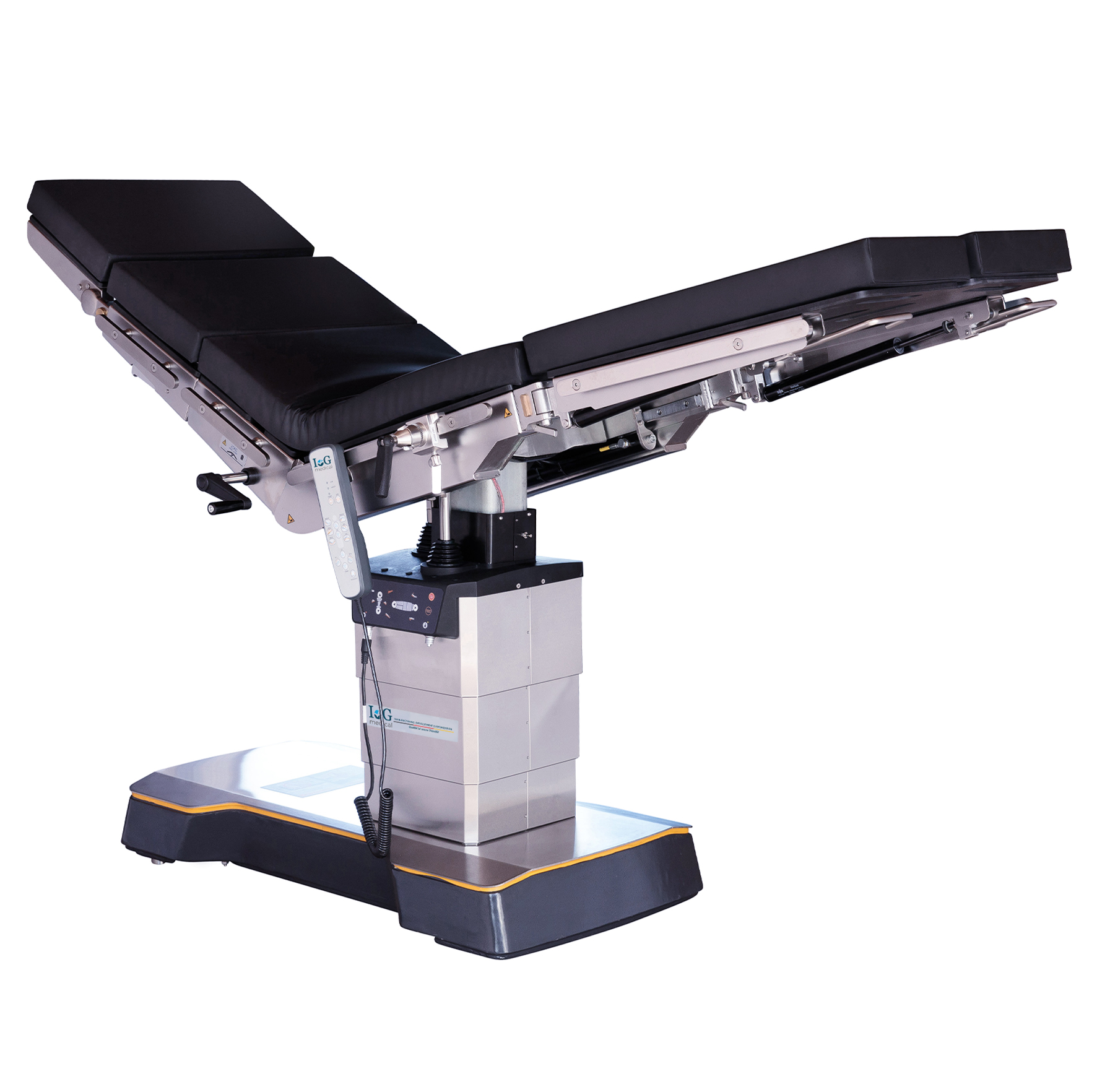

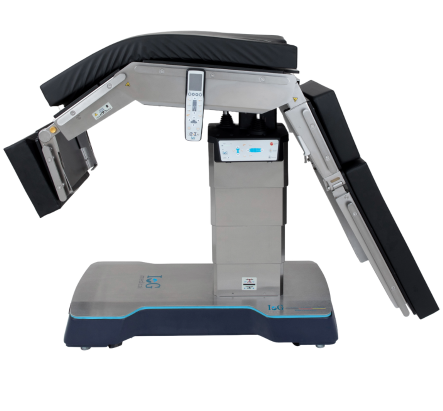

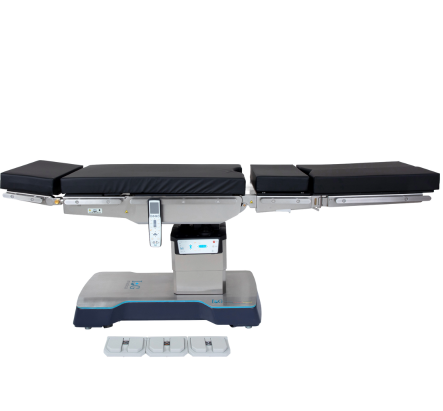

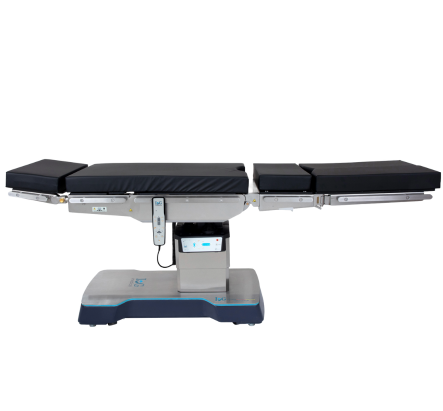

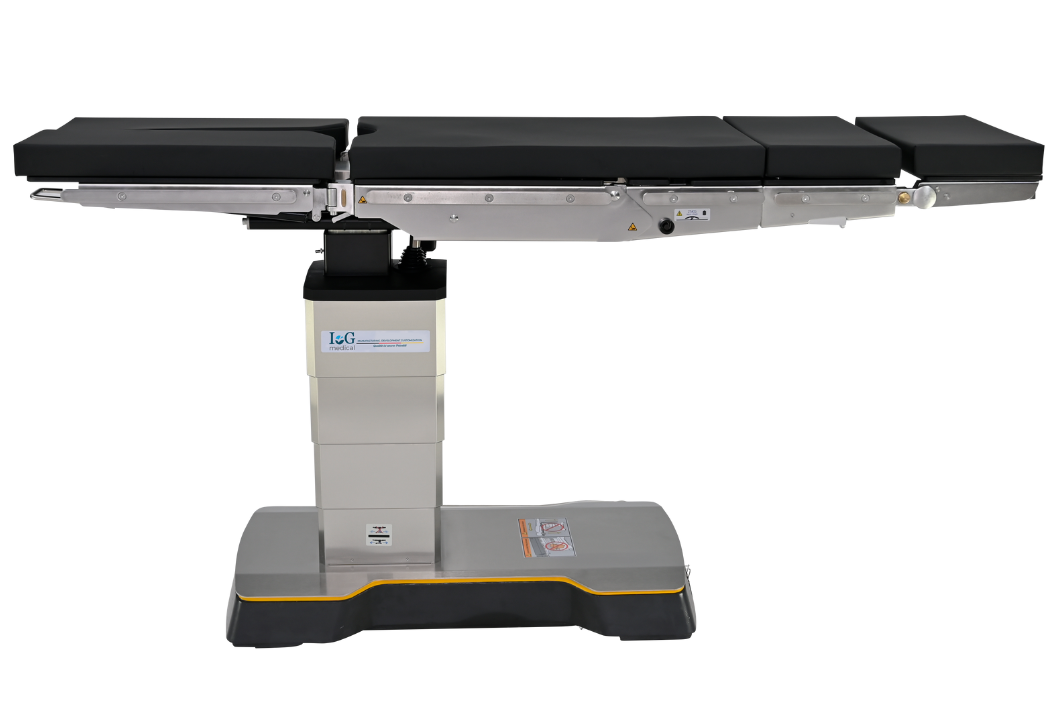

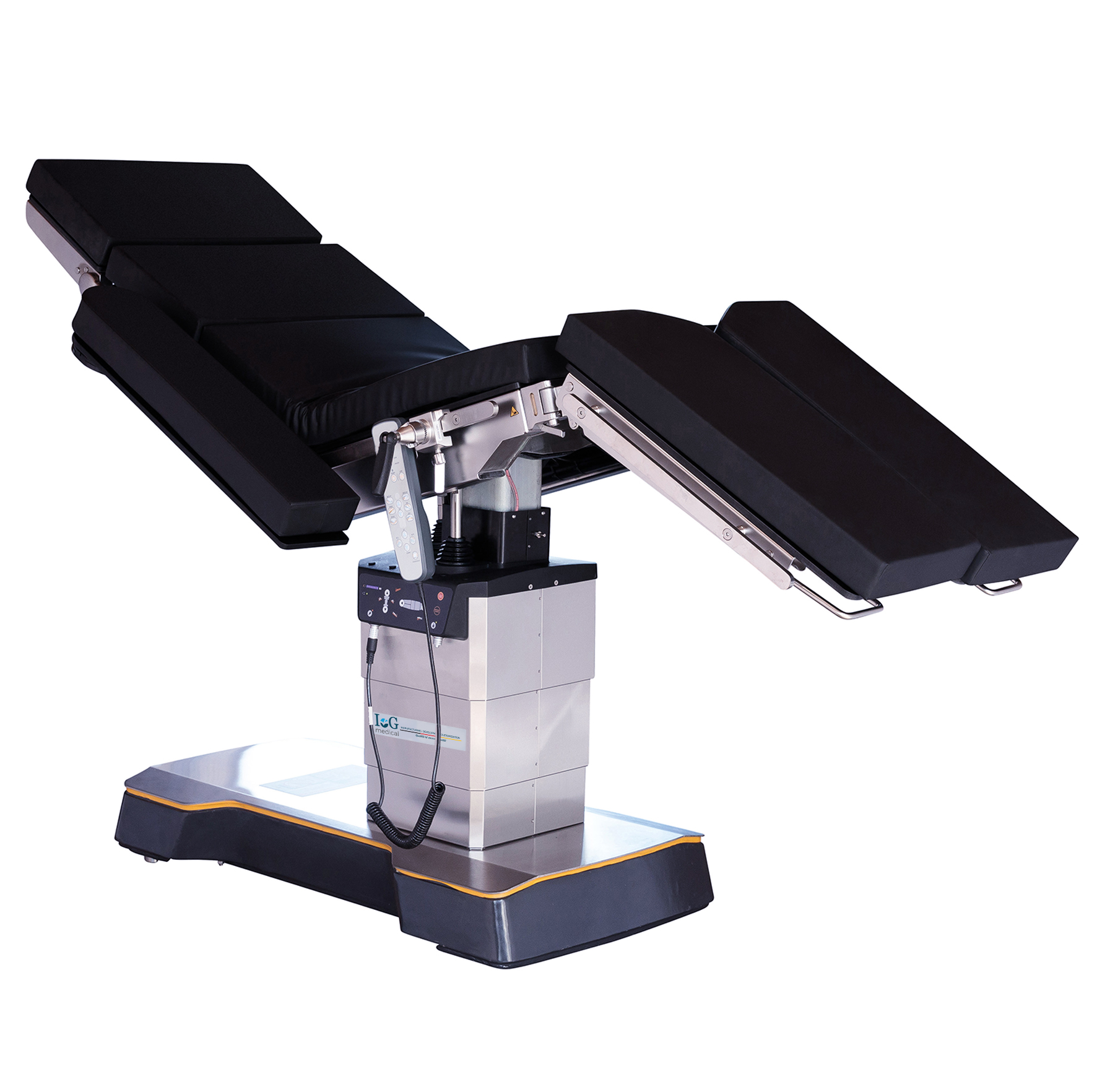

IG Operating Table___ TAB-400
Surgical tables
The electrohydraulic TAB Series surgical table provides great performance due to its electric hydraulic system, strong lifting force, excellent stability, and C-arm compatible features. With its modular tabletop and comprehensive range of accessories, the electro-hydraulic table can be configured for each surgical procedure and for all patient sizes in the best possible way.
It provides open access to the operated area and creates excellent working economics for the surgical team without compromising on patient safety. All electro-hydraulic adjustments are controlled via user-friendly hand controls, either wireless or wired, or foot control units
Stable hydraulic system
- Loading capacity up to 400kg
- Up to 500 kg can be customized
Two independent controlling systems
- Handheld controller
- Wireless controller
- Emergency panel
Fast connections
- Efficient and ergonomic
Sliding range up to 500mm (optional)
1
-
Tabletop up to 6 sections
-
High-quality stainless steel body
-
Multi-layer foam: Waterproof, antibacterial, and antistatic
- Intelligent battery management system
- Integrated kidney elevator: Up to 120mm
- Ultra-low setting table system: For comfort operating
-
Wide range of accessories: Including carbon fiber plate option
2
| Table top length | 2050mm |
|---|---|
| Table top width | 520mm |
| lowest height of top | 600mm /490mm |
| Lifting range of top | 420mm / 500mm |
| Trendelenburg | 36° |
| R. Trendelenburg | 36° |
| Tilt (left / right) | 26° / 26° |
| Flex / Reflex | 95° / 225° |
| Head plate up | 46° |
| Head plate down | 90° |
| Leg plate(up/down/outwards) | 80°/100°/>90° |
| Back Board (up/down) | 80°/40° |
| Load Capacity | 400kgs |
| Kidney elevator | 120mm |
| Sliding | 400mm |
